16 ingangsrelais & 16 uitgangsrelais voor sturing in GeoVision software

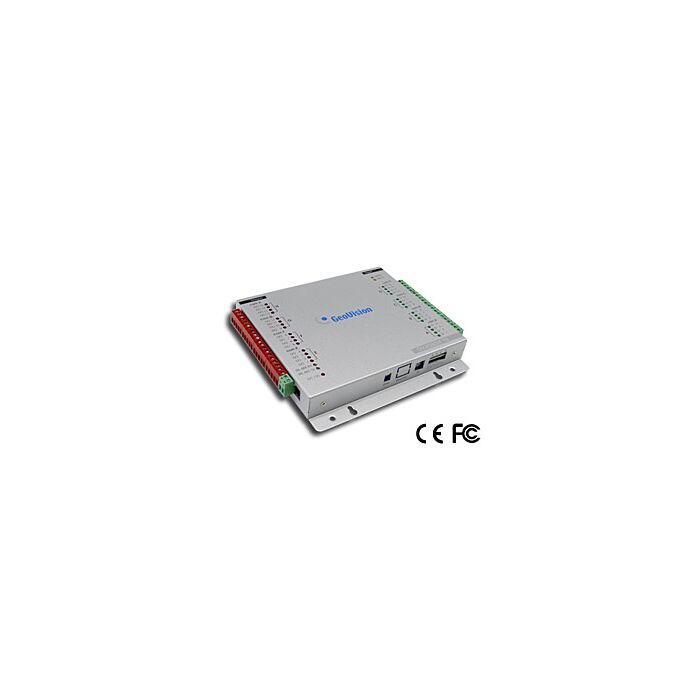

The GV-IO Box 16 provides 16 inputs and 16 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.

Specifications:

OS Supported

32-bit

Windows XP / Windows Vista / Windows 7 / Windows Server 2008

64-bit

Windows 7 / Windows Server 2008

Compatible S/W

GV-System version 8.2 or above

Input

Input

16

Input Signal

Dry Contact

Wet Contact, 9-30V AC/DC

Communication

Relay Output

16

Relay Status

Normal open

Relay Capacitance

USB Connection

30 VDC, 3A

RS-232 /
RS-485 Connection

125 / 250 VAC, 3A
30 VDC, 3A

Ethernet

RJ-45, 10/100Mbps (optional)

DC IN

DC 12V, 1A

Address

0-9, A-F

Terminal Resistance

120 ohm

Environmental Conditions

0 ~ 50 °C / 32 ~ 122 °F
5% ~ 95% (non-condensing)

Dimensions (W x H x D)

180 x 27 x 183 (mm) / 7.09 x 1.06 x 7.2 (in)
